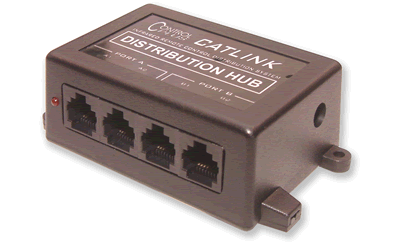

CATLINK Distribution Hub

  The Distribution hub is the central component of the Catlink system and provides power to and receives signals from Receiver heads and converts and drives these signals out to the emitter circuits that drive the Emitter sets that are positioned over the equipment to be controlled remotely.


(part# CL-EHUB38)




The hub is designed to be either free standing or wired into a patch panel arrangement.
The hub is connected to the distribution network via four RJ45 sockets which are wired with pair 4 providing power and signal reception for Receiver heads and pair 1 driving Emitters. This leaves pairs 2 & 3 for other applications such as telephone or Ethernet network if required.
Powered by 12~18VDC via DC socket in side.

Click here to view datasheet (780k pdf)

Also see Catlink AC Adapter

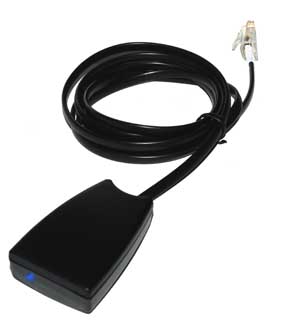

CATLINK Receiver Heads


(part# CL-IRM0238)

Receiver heads receive the remote control signals and convert them into electrical signals that are transmitted down a single twisted pair (in Cat5 this is pair 4) to the distribution hub.

A special feature of each Catlink Receiver head is that a single pair is used both for powering receiver heads and sending signals to the Distribution Hub.

The standard receiver head is designed to be mounted on the television/flat panel or item of furniture and can be attached by use of the supplied velcro pad.

All receiver heads are equipped with an indicator light that blinks when it receives infrared signals.
Leaded Receiver heads are supplied with 1.5 meters of cable and are terminated with a RJ45 jack to pair#4 (pins 7 & 8).

Click here to view flyer (320k pdf)

All Receiver heads are "Sunlight friendly" - can operate in direct sunlight.

Receiver heads are also available in a flush wallplate versions.


(part# CL-IRM0238IP)


The Catlink Insert receiver heads are easy and tidy to install can be either supplied with a small wall plate just as the insert to click neatly into your wall plate of choice.

Equipped with a blue ‘Talk-back’ indicator light mounted behind the Lens and flashes whenever infrared signals are received.
Equipped with two screw terminals for connection to a receiver pair of a Catlink network.

PDL wall plate compatible version (Part# CL-IRM0238I) : Click here to view flyer (304k pdf)
HPM wall plate compatible version (Part# CL-IRM0238IH): Click here to view flyer (213k pdf)
Clipsal wall plate compatible version (Part# CL-IRM0238IC)

New types of Receiver head are in development including weather sealed versions for use in outdoor areas and adjustable wideband versions for increased system compatibility.


CATLINK Emitters Set

The Emitters are infrared transmitters that are positioned over or adjacent to the equipment to be controlled.

The emitter set consists of a standard Emitter pair set (this part common to the Wirelink range as well as competing IR control products plus an RJ45 emitter adaptor cable that allows the emitters to be plugged into the CATLINK network.
Both parts must be ordered separately because of two options available on the emitter adapter lead.

Standard Emitter Adapter lead (pair 1 wired)
(part# CL-EMADP1)

The Emitter adapter lead adapts a standard emitter pair to plug into the Catlink network. The standard arrangement is wired to Cat5 pair 1.

Pair 4 wired Emitter Adapter lead
(part# CL-EMADP4)

The Emitter adapter lead adapts a standard emitter pair to plug into the Catlink network. The pair 4 wired version provides for systems where only pair4 of the Cat5 cable is being allocated to infra red control distribution. This cable is identified from the other by a red sleeve on cable adjacent to RJ45 plug.

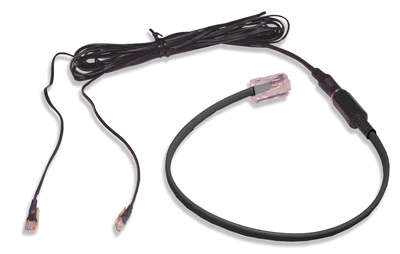

Emitter Pair
(part# EM01)

The emitters set consists of two infrared emitter elements that are positioned over the infrared receiver windows of the equipment to be controlled. Positioning is achieved by use of adhesive strips. Standard length of 2m for each emitter.

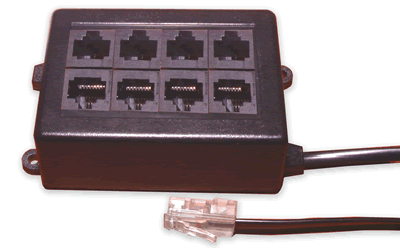

CATLINK Port Expander

Catlink Port Expander
(part# CL-PEX8)

The Catlink Port Expander expands a Catlink Distribution Hub port to 8 inlet/outlets.

Equipped with a 25cm lead terminated with a RJ45 jack for plugging into a Catlink Distribution Hub port or remote RJ45 socket.
Provided with case flanges for screwing to wall or bracket.

Click here to view flyer (190k pdf)

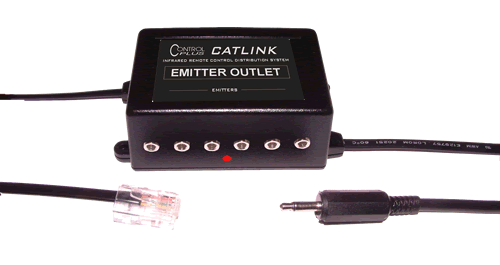

CATLINK Emitter Outlet with Equipment link




Catlink Emitter Outlet & Equipment Adapter
(part# CL-EMOUT6EL)

The Catlink Emitter Outlet & Equipment Adapter provides 6 emitter outlets and an “Equipment Link” adapter lead allowing linking of the Catlink system to other IR control systems.

Provided with case flanges for screwing to wall or bracket.

Click here to view flyer (250k pdf)

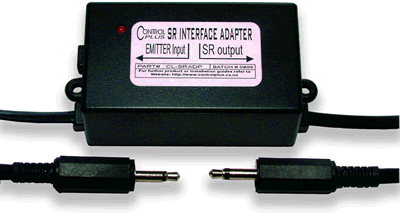

CATLINK SR Interface (Pioneer) Adapter


Catlink Emitter Outlet & Equipment Adapter
(part# CL-SRADP)

The Catlink SR Interface Adapter converts the emitter drive signal from Catlink or other industry standard emitter drive outputs and converts it to a signal compatible with Pioneer equipment SR interface inputs.

Note that this is just intended for Pioneer SR type interfaces which are different to other equipment direct link interfaces.

Provided with case flanges for screwing to wall or bracket.

Click here to view flyer (270k pdf)

CATLINK AC Adapter for CL-EHUB38

Catlink AC Adapter

Catlink AC Adapter for CL-EHUB38
(part# CL-PSR1806)

Quiet, Efficient AC adapter for use with the CL-EHUB38.
GREEN POWER DESIGN and complies with Australiasian MEPS standards.
Short circuit protected.
Light weight (100grams)



Catlink Part Number Summary

Part#
Description
Available
CL-EHUB38 Standard Catlink distribution hub
Yes
CL-IRM0238 Standard Catlink Receiver Head (Sunlight Friendly)
Yes
CL-IRM0238IP Catlink Receiver Head (Sunlight Friendly) - PDL insert version supplied with small PDL wall plate
Yes
CL-IRM0238I Catlink Receiver Head (Sunlight Friendly) - PDL insert version (no wall plate supplied)
Yes
CL-IRM0238IH Catlink Receiver Head (Sunlight Friendly) - HPM insert version (no wall plate supplied)
Yes
CL-IRM0238IC Catlink Receiver Head (Sunlight Friendly) - Clipsal insert version (no wall plate supplied)
Yes
EM01 Emitter Pair
Yes
CL-EMADP1 Catlink Standard Emitter adapter - pair 1
Yes
CL-EMADP4 Catlink Emitter adapter - pair 4
Special Order only
CL-PEX8 Catlink 8 way port expander
Special Order only
CL-EMOUT6EL Catlink Emitter outlet & equipment link
Yes
CL-SRADP Catlink SR Interface (Pioneer) Adapter
Yes
CL-PSR1806 Catlink AC Adapter for CL-EHUB38
Yes
CL-IRM03U Catlink Receiver Head - Wide band
TBR

TBR=To be Released

Discontinued items

CL-IRM0138(-W) Catlink Receiver Head (Non-Sunlight Friendly)
Discontinued
CL-IRM0238V Catlink Receiver Head (Sunlight Friendly) - Wall Hang Mount
Discontinued
